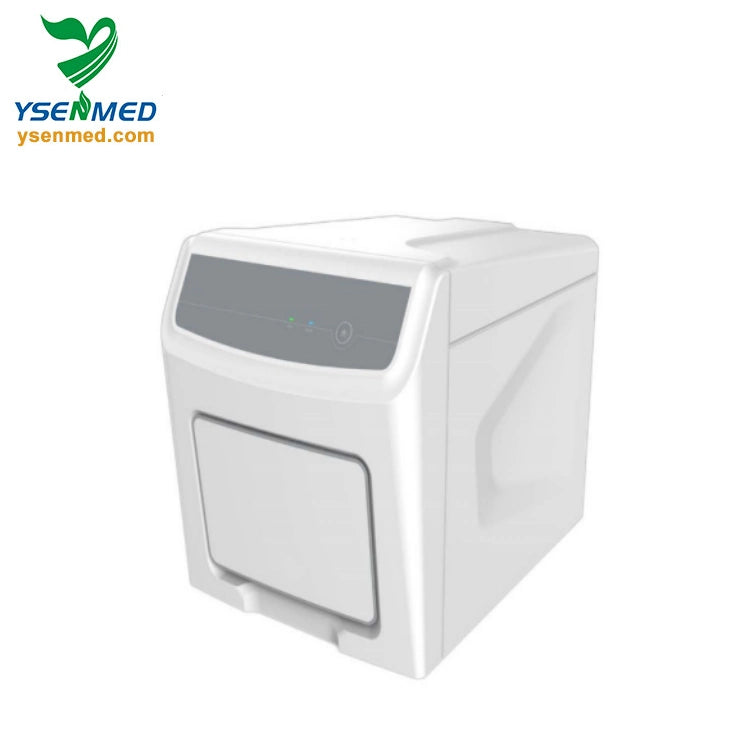

Medical Clinical Real-Time Quantitative PCR Analyzer
Click to zoom in

Have Questions? | Habe Fragen?

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Wordwide Delivery

    Free shipping on all orders

Medical Clinical Real-Time Quantitative PCR Analyzer

2 sold in last 8 hours
UEM
31071A104
Out of stock Many in stock
Clinical&Analytical Instrument
$0.00

customers are viewing this product

Basic Info.

Model NO.
YSPCR-Q96
Detection Device
Pmt
Detection Mode
Time-Resolved Signal Separating Technology
Transport Package
Carton
Trademark
YSENMED
Origin
China
Production Capacity
500 Sets Per Month

Product Description

Medical Clinical Real-time Quantitative PCR Analyzer
Medical Clinical Real-Time Quantitative PCR Analyzer
YSPCR-Q96 real-time quantitative PCR system is based on global vision of product design concepts and manufacturing processes. It creatively combines Fresnel lens optical signal acquisition technology, time-resolved signal separation technology and unique temperature control technology. And it reaches inteDNAtional advanced level in sensitivity, multi-color crosstalk, temperature uniformity and accuracy. It supports the application of all common QPCR detection modes.

Up to 6 fluorescence detection channels meet the requirement of multiplex PCR
Effectively reduce multi-color crosstalk and edge effect
New optical scanning detection system--High sensitivity /resolution
Innovative scanning method and time-resolved signal separation technology--High accuracy
Unique edge temperature compensation technology
Unique design, user-friendly operating software
One-stop process and solution
Classic examples

.
Program:
Step Temperature Time Cycle End point
1 42ºC 20min 1 No
2 95ºC 10min 1 No
3 94ºC 15sec 40 No
55ºC 30sec Yes

Judgment basis:
Positive: Ct≤35,and the amplification curve has a significant exponential growth curve.
Negative:Ct>37,or no significant amplification of the curve.

Recommended retest: 35
Amplification curve:



Technical Parameters
Temperature control system
Sample capacity 0.2ml PCR tubes×96, 8×12 PCR plate or 96 well plate ×1
Reaction volume 10-50 μl
Thermal cycle technology Peltier
Max. Heating/Cooling rate 6.0° C/s
Heating temperature range 4 - 100 °C
Temperature accuracy ± 0.2°C
Temperature uniformity ±0.2ºC @60ºC ,  ±0.3ºC @95ºC
Temperature gradient setting range 30-100°C
Temperature gradient difference setting range 1 - 36 °C
Detection system
Excitation light source 4/6 monochrome high efficiency LEDs
Detection device PMT
Detection mode Time-resolved signal separating technology
Excitation/detection wavelength range 455-650nm/510-715nm
Fluorescent channels 4/6 channels
Supported dye FAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy5/LIZ
Sensitivity Single copy gene
Resolution 1.33 folds copy number difference can be distinguished in single-plex qPCR
Dynamic range 10 orders of magnitude copies


Medical Clinical Real-Time Quantitative PCR Analyzer
Medical Clinical Real-Time Quantitative PCR Analyzer
Medical Clinical Real-Time Quantitative PCR Analyzer
